The 5" compact colour TFT dash
for road and motorsports use.
Available with two version: standard icon & street icon.
The 6'' colour TFT dash logger for motorsports.
MyChron5 and MyChron5 2T, besides sampling all your kart data, feature all the advantages of a new concept GPS plus a lot of new functions, designed to provide more complete and reliable information.
The brand new GPS lap timers for motorsports.
GPS08 is more precise than most of the existing GPS systems, as it has been designed to add to the GPS satellite's signal the Global Navigation Satellite (Glonass) system signal.

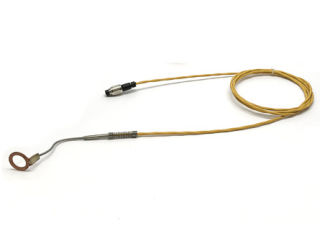

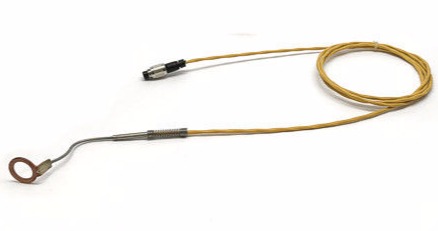

Ø14 mm, Binder con. AiM devices can measure the cylinder head temperature of your kart using a sensor – thermocouple – placed between the spark plug and the cylinder head.

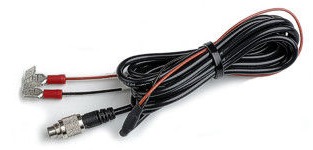

External power directly from your kart battery,

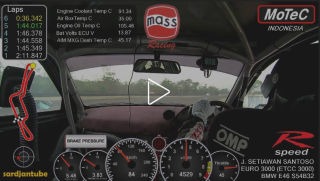

In Car video of BMW E46 M3 S54B32
Driver: J. Setiawan Santoso
A wide range of data sources
MXS 1.2 Strada, the evolution of MXS Strada, is a 5" color display with great visual impact, configurable to show lap times and all the info coming from the Engine Control Unit, analog/digital inputs, pre-defined math channels and - optionally - the GPS08 Module.
MXS 1.2 Strada is available in two versions:
Standard version
Street icon version
CAN output
With the CAN Output you can send messages directly
to an existing CAN network in order to improve
the range of vehicle control possibilities.

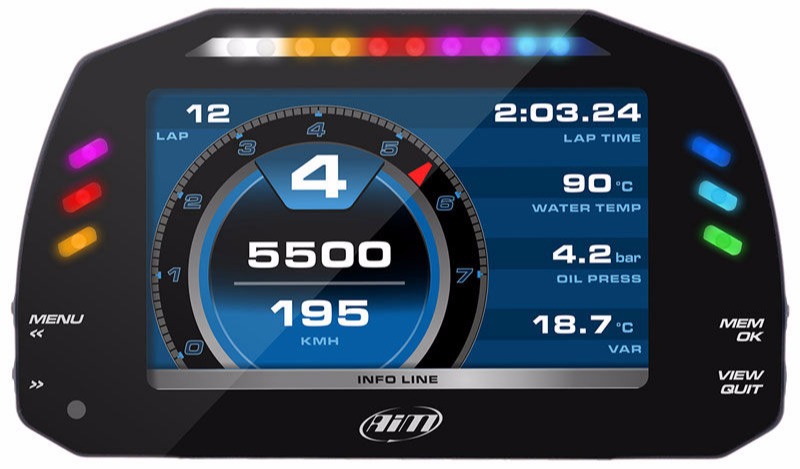

MXS 1.2 Strada shows, together with RPM scale, all the data you need, like speed, water temperature
and oil pressure, laptimes and much more...
You can choose the custom pages you wish
among a wide library of page styles,
defining which data to be shown,
their end of scale and measure units.
Swapping between pages is quite
easy using the pushbuttons.
MXS 1.2 Strada features a high contrast
TFT display: its visual quality is always
optimal as its ambient light sensor keeps
the backlight at the best brightness levels.
The dash is of course available also
in the "Street Icons" version
(fuel, oil, water temp., etc.).
Flexible alarms
The ten multicolored RGB shift lights can be customized as you like, defining the RPM threshold for each single gear.
The same flexibility applies to the configurable RGB alarm LEDs: you can configure them in order to turn them on/off depending on analog or digital inputs, ECU values, expansion values, math channels or - optionally - GPS information.
You choose conditions and colors: select a solid alarm or flashing one - and the flashing frequency.
It is also possible to configure an accompanying text message, and set the alarm priorities.
Digital output
MXS 1.2 Strada features a LOW SIDE type
(switch to ground) digital output configurable
in order to be activated/deactivated depending
on the value of the analog/digital inputs
or on impulses coming from the ECU.
This permits to automatically run external
systems, i.e. to switch on/off additional
lights, to activate/de-activate a cooling
fan or circulation pumps, etc. when a certain
event happens.
Camera inputs,
also for mirror camera
Two analog camera inputs are available,
to swap your display into a mirror camera,
through pushbutton command
or event management.

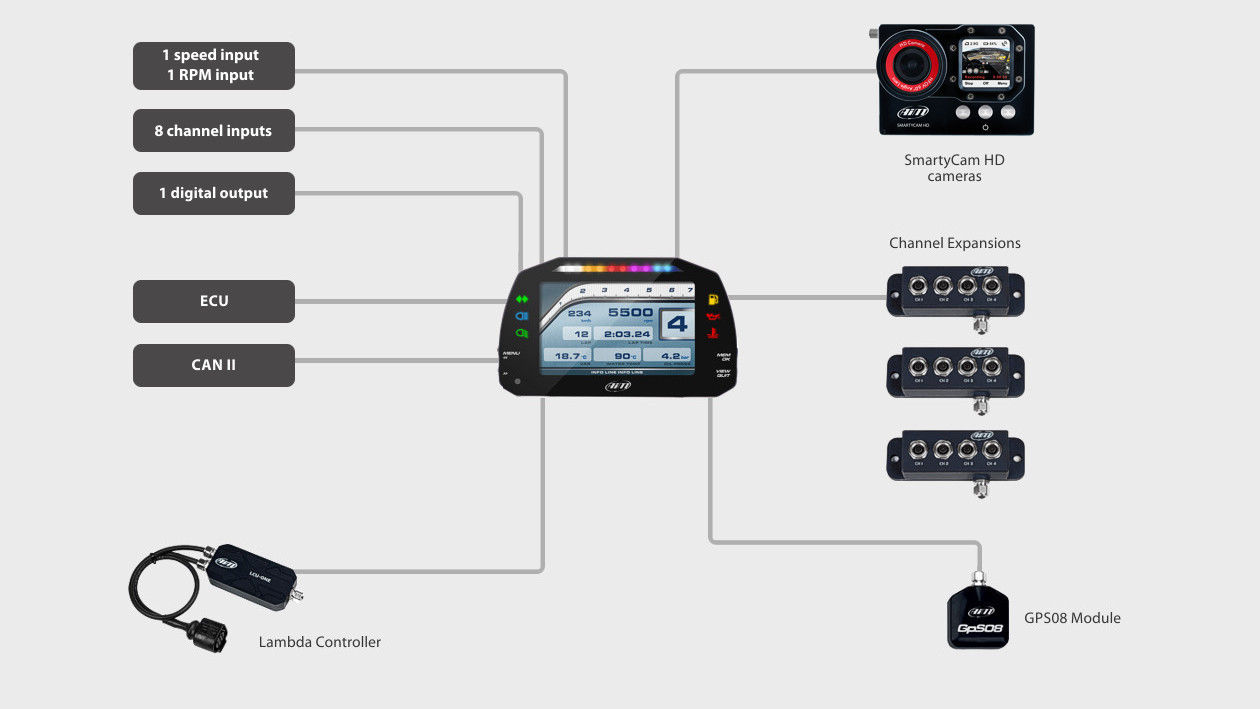

A modular system
Using the built-in CAN bus you can add expansion modules to visualize additional info:
GPS08 Module
Thanks to GPS08 Module (included in the kit) and its Race Studio 3 software, you can immediately get laptimes and all data needed for engine tuning as well as for improving driving technique.
Channel Expansion
It permits to add 4 0-5Volt analog channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed.
TC Hub
It adds 4 K thermocouples.
LCU-One CAN
Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the carburetion.
SmartyCam HD cameras
The on-board cameras that overlays on videos the data sampled by your logger.
Race Studio 3 configuration
MXS 1.2 Strada is to be configured via Race Studio 3: you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital output, Alarms, Shift Lights and all the expansions you need.
Download Race Studio 3 Software

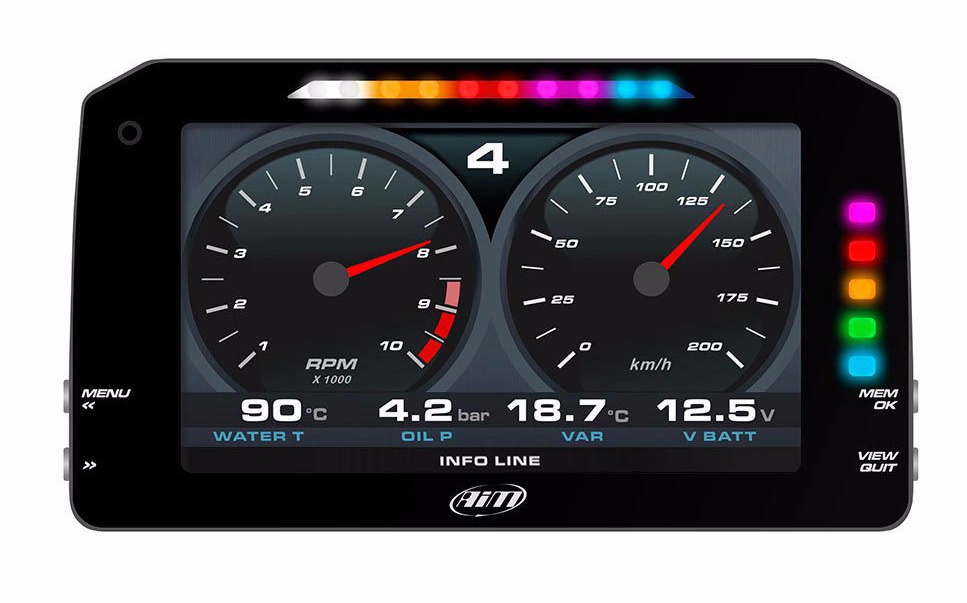

MXP offers 50% more display area than the 5'' MXS display, in a similar dimension.
The dash logger has an integrated shift array, configurable multicolor alarms, drag and drop multi page configuration, Wi-Fi and USB connectivity, GPS Module, inertial platform, analog and digital inputs, digital outputs, Motorsport connectors, 4 GB of internal memory, 1,000Hz per channel sampling and support for over 1,000 ECU connections.
A wide range of data sources
MXP samples data coming from your ECU, the GPS Module, the 9 axis inertial platform (accelerometer, gyro and magnetometer), 8 fully configurable analog inputs, 6 digital inputs, predefined math channels and second CAN. Performance and data acquired can also be incremented adding up to eight expansion modules.
ou can define all the custom pages you wish,
choosing among a wide library
of page styles, defining which data
to be shown, their end of scale and measure units.
Swapping between pages can be managed
pushing one or two pushbuttons.
A high contrast TFT display identifies
MXP at the first glance.
An ambient light sensor keeps
the backlight at optimum brightness levels.
Flexible alarms & custom street icons
MXP features five configurable RGB alarm LEDs: you choose the conditions, you choose the colors.
Select a solid alarm or flashing one - and the flashing frequency, choose to have an accompanying text message, and set the alarm priorities. Furthermore you can select the street icons you need among the wide list you will find in "Race Studio 3 - Icons Management" and set them up the way you prefer or according with your needs. Any of them is fully configurable and if this shouldn't be enough, you will be able to upload and set up your own customized icons.
Two digital outputs
MXP features two digital outputs.
The two digital outputs (Dout) are LOW SIDE type
(switch to ground): they can be configured in order
to be turned on/off depending on the value
of the analog or digital inputs.
They permit to automatically run external systems,
i.e. to switch on/off additional lights,
to activate/de-activate a cooling fan
or circulation pumps, etc. when
a certain event happens.
Camera inputs,
also for mirror camera
Two analog camera inputs are available,
to swap your display into a mirror camera,
through pushbutton command
or event management.
Integrated shift light array
Choose from a host of advanced
multicoloured RGB shift light patterns
that can be customized as you like,
and for each unique gear when required

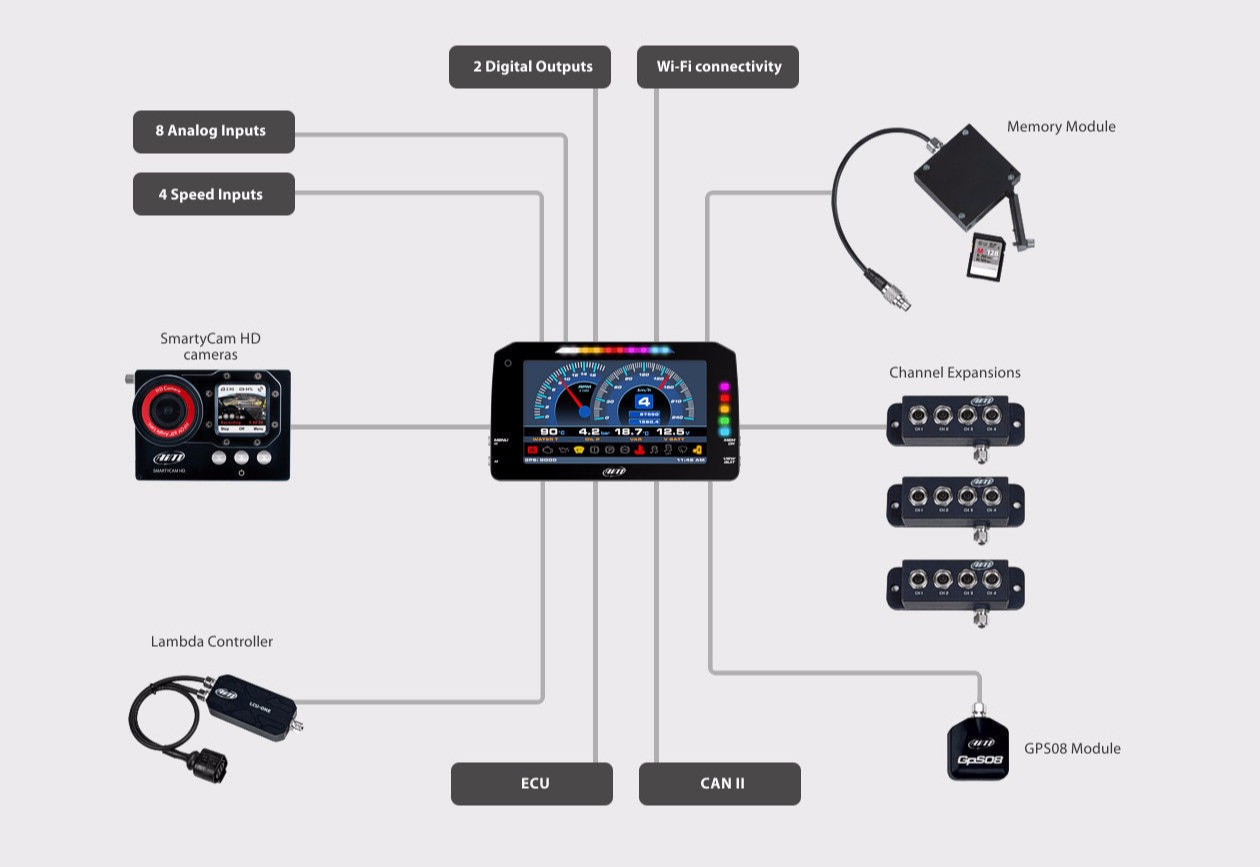

Expand the system, according to your needs
Using the built-in CAN bus, you can add expansion modules to the MXP to increment the performance and the data acquired:
GPS08 Module
Thanks to GPS08 Module (included in the kit) and its Race Studio 3 software, you can immediately get laptimes and all data needed for engine tuning as well as for improving driving technique.
Channel Expansion
It permits to add 4 0-5Volt analog channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed.
TC Hub
It adds 4 K thermocouples.
LCU-One CAN
Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the carburetion.
SmartyCam HD cameras
The on-board cameras that overlays on videos the data sampled by your logger.
Memory Module
The Memory Module is a small SD Card holder that can be connected via CAN bus to your AiM logger in order to record the data during your tests.
Race Studio 3,
the almighty software
Race Studio 3 is the heart of your MXS 1.2, managing all your activities related to:
Configuration
With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.
Analysis
With Race Studio 3 you can also analyse all data recorded by MXS 1.2 and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances.
Download Race Studio 3 Software
Wi-Fi connectivity
Makes it even more convenient
to configure, calibrate, and download your data
wirelessly, using a secure 802.11 WiFi
connection: no need to move your PC close
to the vehicle anymore, you can do it
from your van up to 50 meters away.

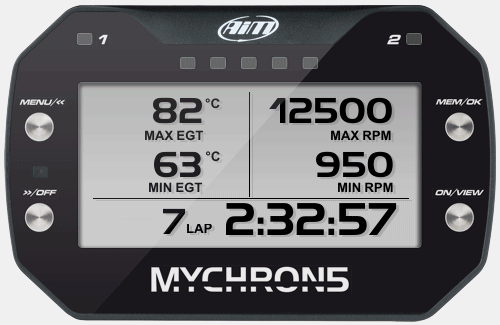

Data acquisition for karts enters a totally new dimension: MyChron5, besides sampling all your kart data, features all the advantages of a new concept GPS plus a lot of new functions, designed to provide more complete and reliable information.
Lap and split times, speed, RPM and one temperature as well as position on track, acceleration and much more.
MyChron5 has been designed to provide either basic info to newbies and the most sophisticated data to karting professionals.
MyChron5 2T also samples a second temperature at your choice.
We were all used to lap time acquisition via magnetic strips, infrared beacons or even the good old stopwatch. MyChron5 completely changes the rules of the game because its GPS samples lap and split times as well as speed, position on track and acceleration... with precision and reliability simply not comparable to traditional tools and even with previous GPS systems.
- Two satellite systems
- AiM tracks database
- Much more than just lap times
To maximise readability of data, you need plenty of room. That is why MyChron5 features a wide 268x128 pixel graphical display. The screen can be backlited in one of the eight available colors.
The incorporated light sensor makes brightness and contrast ideal in all light conditions.
Choose optimal layout for your data
Lap and split times, best lap, RPM, gear number, track map and much more are shown in pre-configured pages: you will be able to choose the page layout you prefer to better monitor your data.
At the end of your session, you can recall the summary of your three best laps: lap time, max/min RPM, speed and temperature.
For your best lap, you will also see splits and best theoretical time.
Is it your best lap or do you need to shift? Multifunctional LEDs will tell you
MyChron5 features five individually configurable RGB LEDs: you will choose color and value thresholds for their activation. In addition, they can be configured to show your best lap/split time, monitor RPM level and even signal the right moment for gear shift.
Monitor water temperature or any other parameter
with configurable alarm LEDs
You can configure alarm LEDs as well, in order to turn them on/off depending on the values you selected: water temperature or any other parameter you may need.
Wireless data download
with Wi-Fi connection
MyChron5 offers the opportunity to download the data wirelessly, using an easy and safe Wi-Fi connection: no data key or PC connection are needed anymore. Wi-Fi data transfer is easily configurable via PC or keyboard. In case of a connection of more than one gauge/PC (a typical situation in a team)
it is possible to transfer data to/from all MyChron5 devices and PC's at the same time.
In this case you would need to buy an access point, which will act as a bridge between
the gauges and the PC's.
External power or battery charge?
You choose.
You can power MyChron5:
- By socket, using the charger included in the kit.
- By socket, using the proper charger*: in this case, you do not need to remove it from the gauge.
- Just use the external power cable*.
The lithium battery - not being used - can be removed: in this case the aluminum cover* is to be applied to protect the power connectors (Directly from your kart battery)
*Optional
Compatibility with MyChron4 expansions
and add-ons
LCU-One CAN
LCU-One Lambda controller, to optimize your engine carburetion.
SmartyCam HD Rev.2.1
SmartyCam on-board camera, for professional recording of your races, with your real-time data overlayed on videos.
MyChron Expansion
The channel multiplier, to check when you brake and accelerate, as well as Power Valve behaviour.
Infrared Temperature Controller
To connect tire temperature sensors to MyChron5.
Data Hub
The CAN connection multiplier working as an interface between MyChron5 and its peripheral equipments.
Sensors
Temperature, pressure, brake/throttle, steering wheel, speed, RPM sensors.
Race Studio 3:
the best tool to understand how to go faster
At the end of each session, your data can be downloaded and analysed in depth on your PC with Race Studio 3 software: charts, graphs and histograms will help you to understand your performance, finding out what needs to be improved.
Download Race Studio 3
A simply indestructible chassis
A glass fiber reinforced Nylon body along with metal buttons and anti-scratch non-reflecting polycarbonate display guarantee MyChron5 top resistance to shocks and adverse weather conditions.
Two temperatures under your control
Especially engineered for the most demanding racers, MyChron5 2T permits you to monitor your kart performances by controlling two engine temperatures instead of one.
MyChron5 2T samples data related to two temperatures, coming from:
Two thermocouples:
to keep carburation under control
Two thermoresistors:
to measure the engine's working temperature
One thermocouple and one thermoresistor:
to monitor the key parameters of your engine

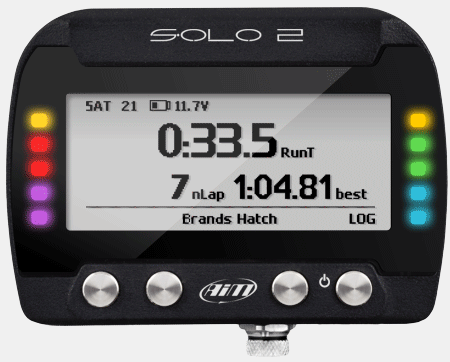

The new Solo 2 receives the data from two satellites constellations, GPS and Glonass: this is a huge step forward since it is unbelievably faster and more precise than the previous version and the lap times are calculated within a maximum gap not higher than 2/100 sec.
The screen can be backlited in one of the seven available colors
Solo 2 can rely on a database of more than 2,000 tracks all over the world: as soon as it switches on, Solo 2 identifies its position, recognizes the starting line coordinates of the track and starts sampling lap times.
In case the track is not in the database, no problem: Solo 2 realizes it and switches to learning mode, automatically understands the characteristics of the track and gives the lap time anyway.
Even the predictive lap time is much more reliable,
and the configurable RGB LEDs
will give you the time gap compared to the best lap you set as reference.
Race mode selection
Solo 2 can manage two types of races:
- Speed races in a closed circuit
- Performance tests (0-100 km/h etc.)
In each of these configurations,
Solo 2 gives the proper information
during the test and powerful data
review immediately after each session.
Data recall on screen
At the end of your test,
you can quickly review
all the key information on your display.
Wi-Fi communication
with the PC
Wi-Fi connection: easy, fast, without
connectors nor cables: the best way
to configure your Solo 2, to manage
the track database, to download
the data to your PC.
Solo 2 DL,
the Solo with ECU connection
More than 1,000 protocols for 1,000+ ECU in the database,
for easily connect your Solo 2 DL to your Engine Control Unit
and get a lot of information with just one cable.
In case your ECU protocol is not in the database, no problem:
an ECU Driver Builder is always available in the Race Studio 3
configuration software, and you will be able to create
your protocol by yourself.
Coil RPM input
Solo 2 DL now features a digital input allowing to log RPM
either from square wave signals (8-50 V signal)
or pulse signals (150-450 V ignition coil trigger - primary circuit).
SmartyCam HD connection
The perfect connection: get all the data from your ECU, merge them with the GPS information and transmit everything to the SmartyCam HD, that will show them in graphical overlay in the video.
Specific bar pads for motocross
Bar pads to fit handle bars
with and without brace
are available for immediate
installation on every kind
of motocross bike.
Click here for more info
Connection kits for sports bikes
AiM designed specific applications to allow easy installation and connection of both Solo 2/Solo 2 DL on sports bikes. Installation kits for BMW, Ducati, Honda, Kawasaki, MV Agusta, Suzuki and Yamaha are currently available. More will follow.
- BMW
- DUCATI
- HONDA
- KAWASAKI
- MV AGUSTA
- SUZUKI
- YAMAHA

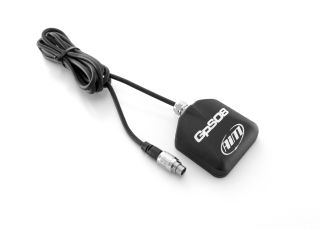

GPS technology represents a true revolution in racing data acquisition.
Now, thanks to GPS08 Module and Race Studio 3 software,
as soon as you start your track session you can immediately
sample lap and split times as well as speed, position
and acceleration... all the information needed
for engine tuning as well as for improving
your driving technique.

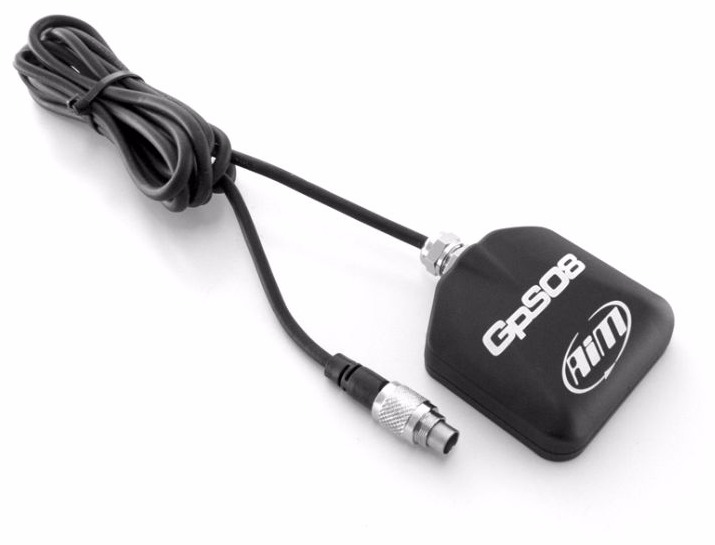

GPS08 is more precise than most of the existing GPS systems, as it has been designed to add to the GPS satellite's signal the Global Navigation Satellite (Glonass) system's signal. With an average of almost twenty satellites working in conjunction, GPS08 guarantees a precision and a reliability simply not comparable to the old generation GPS systems.
The benefits are huge:
An average of less than one meter
tolerance, which means absolute
precision in determining vehicle
position in curves and when the finish
line is very close to another track
segment.
Satellite signal is locked very rapidly.
A few seconds after switch-on,
the GPS08 is ready to operate.
No risk of missing the signal anymore,
as - in case of 'noise' or interferences
on one system - the other system will
guarantee the signal continuity.
As soon as GPS08 switches-on, it identifies its position and - if your track is included in the list of tracks stored on Race Studio 3 database - will start sampling lap times.
In fact, the software stores the finish line coordinates (plus map, contact info and logo) of more than two thousands tracks, sorted by Nation, circuit and surface type: you will be able to create your own collections, adding/removing tracks as you wish.
Just download your own selection to the AiM system and GPS08 will be ready to operate.
Should your home track be missing, you can easily add it to your own tracklist when downloading your session files to Race Studio 3.
Much more than just lap times
GPS08 samples ten times per second position, speed and lateral/in-line acceleration at any point of the track: all the data needed for a precise evaluation of vehicle and driver behavior, which is the necessary step to improve performance.
Thanks to GPS08, even the predictive lap time will be much more reliable: in any moment of your race, you will know your time gap vs. your best lap with absolute precision.
... and for closed-roof-cars...
GPS08 is also available in the "Roof" version,
specifically designed for easy installation
on covered cars.
Ø14 mm, Binder con.
AiM devices can measure the cylinder head temperature of your kart using a sensor – thermocouple –
placed between the spark plug and the cylinder head.
External power directly from your kart battery, Just use the external power cable. The lithium battery - not being used - can be removed: in this case the aluminum cover* is to be applied to protect the power connectors.
*Optional
SHARE THIS PAGE!
