Haltech Engine Management Systems - Authorised Dealer in Indonesia

KSnusa, KS Motorsport Indonesia, Haltech Indonesia

Mobirise

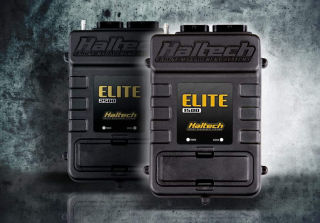

Choose your ECU according to your needs and budget

Mobirise

Haltech Universal ECU Kit with Terminated Premium Harness (with fuse & relay box).

Mobirise

Haltech IC-7 Colour Display Dash and IC-7 Mounting Bracket with Integrated Visor and Multi-Function CAN Gauge.

Mobirise

Ignition Modules, Ignition Coils, M&W CDI Ignition Systems, Idle Air Control (4 Wires), Boost Control Solenoid, etc.

Mobirise

CAN O2 Wideband Controllers, O2 Sensors, I/O Expander, Map Sensors, Pressure Sensors, Air Temp Sensor, Oil Temp Sensor, Throttle Position Sensor, 12 Position Rotary Trim Module, Hall Sensors, Knock Sensor, GPS Speed Input Module, Brake Pressure Sensor, Steering Sensor, etc.

Mobirise

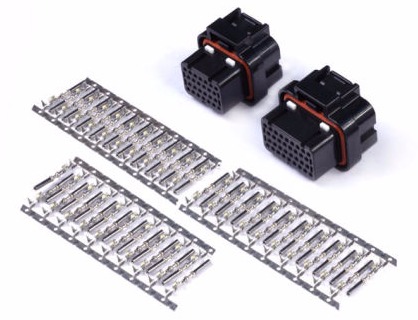

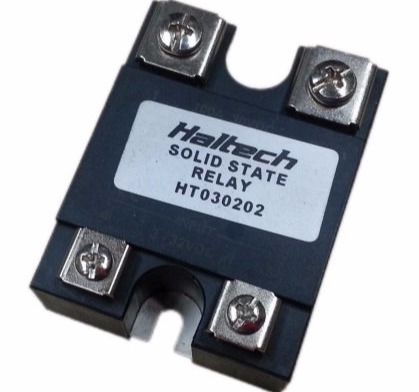

Connectors & Pins, Solid State Relays, etc.

Mobirise

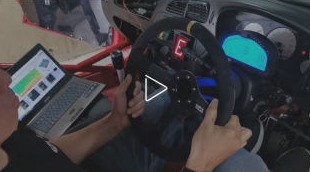

Haltech Elite 2500 on Mitsubishi EVO IV Touring Race Car - Paddle Shift - Drive By Wire Throttle.

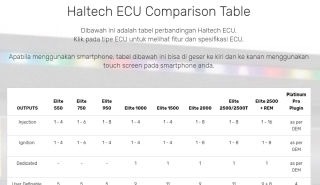

Haltech ECU Comparison Table

Dibawah ini adalah tabel perbandingan Haltech ECU.
Klik pada tipe ECU untuk melihat fitur dan spesifikasi ECU.

Apabila menggunakan smartphone, tabel dibawah ini bisa di geser ke kiri dan ke kanan menggunakan touch screen pada smartphone anda.

OUTPUTS Elite 550Elite 750 Elite 950 Elite 1000 Elite 1500 Elite 2000 Elite 2500/2500T
Elite 2500 + REMPlatinum Pro Plugin
Injection1 - 41 - 61 - 81 - 41 - 41 - 81 – 81 – 16as per OEM
Ignition 1 - 41 - 61 - 41 - 41 - 41 - 81 – 81 – 8as per OEM
Dedicated ---11111as per OEM
User Definable 5559119119 + 84
Total13

17171820262842N/A
INPUTS

Elite 550

Elite 750Elite 950Elite 1000Elite 1500Elite 2000Elite 2500/2500TElite 2500 + REMPlatinum Pro Plugin
Dedicated 63355666as per OEM
User Definable 27714141414274
Total810101919202033N/A
FEATURESElite 550Elite 750Elite 950Elite 1000Elite 1500Elite 2000Elite 2500/2500TElite 2500 + REMPlatinum Pro Plugin
Waterproofing YESYESYESYES (with pocket cover)YES (with pocket cover)YES (with pocket cover)YES (with pocket cover)YES (with pocket cover)NO
Flex Fuel InputNOYESYESYESYESYESYESYESYES
Closed Loop O2 ControlSingleSingleSingleDual BankDual BankDual BankDual BankDual Bankas per OEM
Knock ControlNONONOSingleSingleDualDualDualas per OEM
Variable Cam ControlNOSingleSingleUp to 2Up to 4Up to 2Up to 4Up to 4as per OEM
Long Term LearningNOUp to 3DUp to 3DUp to 3DUp to 4DUp to 3DUp to 4DUp to 4Das per OEM
Data LoggingLaptop OnlyLaptop + OnboardLaptop + OnboardLaptop + OnboardLaptop + OnboardLaptop + OnboardLaptop + OnboardLaptop + OnboardLaptop + Onboard
Anti-Lag / Rotational IdleNONONOYESYESYESYESYESYES
Rolling Anti-LagNONONOYESYESYESYESYESNO
Launch ControlNONONOYESYESYESYESYESYES
Traction ControlNONONOYESYESYESYESYESNO
Tuning Table Resolution16 x 3216 x 3216 x 3232 x 3232 x 3232 x 3232 x 3232 x 3232 x 32
Engine ProtectionNO NO NO Single LevelMulti LevelSingle LevelMulti LevelMulti LevelSingle Level
RACE FUNCTIONSElite 550Elite 750Elite 950Elite 1000Elite 1500Elite 2000Elite 2500/2500TElite 2500 + REMPlatinum Pro Plugin
Nitrous ControlNO1 Stage1 Stage1 StageUp to 6 Stages1 StageUp to 6 StagesUp to 6 Stages1
Boost Control3D Open Loop3D Open Loop3D Open Loop3D Closed Loop4D Closed Loop3D Closed Loop4D Closed Loop4D Closed Loop2D Closed Loop
CO2 ControlNONONONOYESNOYESYESNO
Intake Air Bleed ControlNONONONOYESNOYESYESNO
Flat Shift SupportNONONOBasicAdvancedBasicAdvancedAdvancedBasic
Shock Travel and Ride HeightNONONONOYESNOYESYESNO
Trans Brake NONONONOYESNOYESYESNO
Advanced Torque ManagementNONONONONONOYES (2500T)YESNO

Haltech Universal ECU Kit

Klik pada gambar untuk melihat fitur, spesifikasi dan lembaran data.

Mobirise

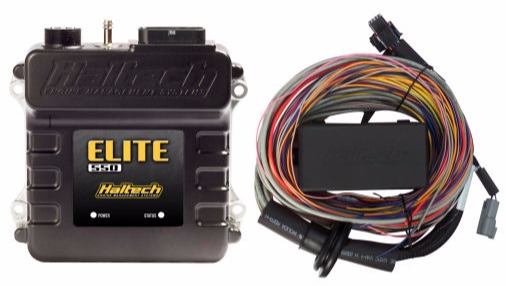

Elite 550 +
Premium Universal Wire-in Harness Kit
LENGTH: 2.5m (8')
Part Number: HT-150404

LENGTH: 2.5m (8')
OUTPUTS: Up to 4 injector and 4 ignition.
SUITS: Universal 1-8 cylinder or 2 rotor applications.
INCLUDES: Elite 550 ECU, Premium universal wire-in harness. firewall grommet, moulded 6 power circuit Haltech fuse box and lid. 2 relays, 4 fuses and pins for the 4 spare power circuits. Waterproof USB cap, USB programming cable and software CD.
NOTES: Haltech's entry level, single connector ECU Kit. Ideal for basic 4 cylinder or 2 rotor engine applications and basic EFI conversions.

Mobirise

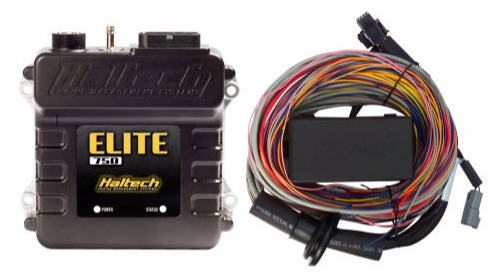

Elite 750 +
Premium Universal Wire-in Harness Kit
LENGTH: 2.5m (8')
Part Number: HT-150604

LENGTH: 2.5m (8')
OUTPUTS: Up to 6 injector and 6 ignition.
SUITS: Universal 1-12 cylinder or 2-3 rotor applications.
INCLUDES: Elite 750 ECU, Premium Universal Wire-In Harness. Firewall grommet, moulded 6 power circuit Haltech fuse box and lid. 2 relays, 6 fuses and pins for the 6 spare power circuits. Waterproof USB cap, USB programming cable and software CD.
NOTES: Single connector ECU kit ideal for basic 6 cylinder or 2 rotor engines, basic EFI conversions, single VVTi engines.

Mobirise

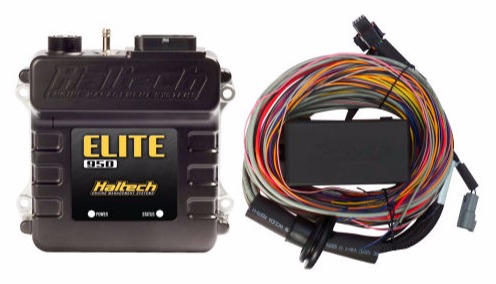

Elite 950 +
Premium Universal Wire-in Harness Kit
LENGTH: 2.5m (8')
Part Number: HT-150704

LENGTH: 2.5m (8')
OUTPUTS: Up to 8 injector and 4 ignition.
SUITS: Universal V8 applications.
INCLUDES: Elite 950 ECU, Premium Universal Wire-In Harness. Firewall grommet, moulded 6 power circuit Haltech fuse box and lid. 2 relays, 4 fuses and pins for the 4 spare power circuits. Waterproof USB cap, USB programming cable and software CD.
NOTES: Single connector ECU kit specifically designed for V8 engines and basic carburetor-to-EFI conversions.

Mobirise

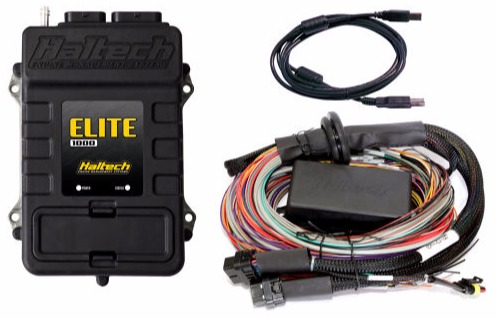

Elite 1000 +
Premium Universal Wire-in Harness Kit
LENGTH: 2.5m (8')
Part Number: HT-150804

LENGTH: 2.5m (8')
OUTPUTS: Up to 4 injector and 4 ignition.
SUITS: Universal 1-12 cylinder or 2 rotor applications.
INCLUDES: Elite 1000 ECU, Premium Universal Wire-In Harness. Firewall grommet, moulded 6 power circuit Haltech fuse box and lid. 4 relays, 7 fuses and pins for the 2 spare power circuits, USB programming cable and USB Software Key.
NOTES: Basic, two connector ECU kit ideally suited for popular 1990s and early 2000s performance engines.

Mobirise

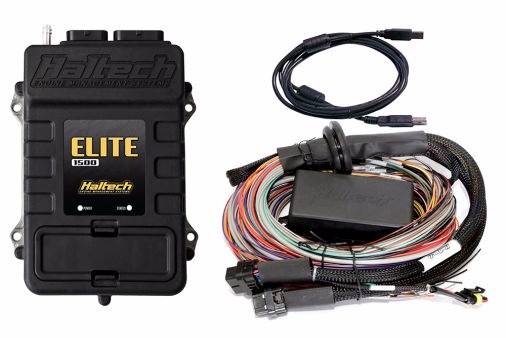

Elite 1500 +
Premium Universal Wire-in Harness Kit
LENGTH: 2.5m (8')
Part Number: HT-150904

LENGTH: 2.5m (8')
OUTPUTS: Up to 4 injector and 4 ignition.
SUITS: Universal 1-12 cylinder or 2 rotor applications.
INCLUDES: Elite 1500 ECU with DBW and Race Functions. Premium Universal Wire-In Harness. Firewall grommet, moulded 6 power circuit Haltech fuse box and lid. 4 relays, 7 fuses and pins for the 2 spare power circuits. Waterproof USB cap, USB programming cable and USB Software Key.

Mobirise

Elite 2000 +
Premium Universal Wire-in Harness Kit
LENGTH: 2.5m (8')
Part Number: HT-151204

LENGTH: 2.5m (8')
OUTPUTS: Up to 8 injector and 8 ignition.
SUITS: Universal 1-12 cylinder or 2-4 rotor applications.
INCLUDES: Elite 2000 ECU, Premium Universal Wire-In Harness. Firewall grommet, moulded 6 power circuit Haltech fuse box and lid. 4 relays, 7 fuses and pins for the 2 spare power circuits. Waterproof USB cap, USB programming cable and USB Software Key.

Mobirise

Elite 2500 +
Premium Universal Wire-in Harness Kit
LENGTH: 2.5m (8')
Part Number: HT-151304

LENGTH: 2.5m (8')
OUTPUTS: Up to 8 injector and 8 ignition.
SUITS: Recommended for 4, 6, 8 cylinder, Drive-By-Wire (DBW) or 2, 3, 4 rotor engines, EFI conversions, engines with multiple variable camshafts.
INCLUDES: Elite 2500 ECU with DBW and Race Functions. Premium Universal Wire-In Harness. Firewall grommet, moulded 6 power circuit fuse box and lid. 4 relays, 7 fuses and pins for the 2 spare power circuits. USB programming cable and USB Software Key.
NOTES: Top of the range, two-connector ECU. Ideal for popular late model performance and racing applications.

Haltech Colour Dash

Klik pada gambar untuk melihat fitur, spesifikasi dan lembaran data.

Mobirise

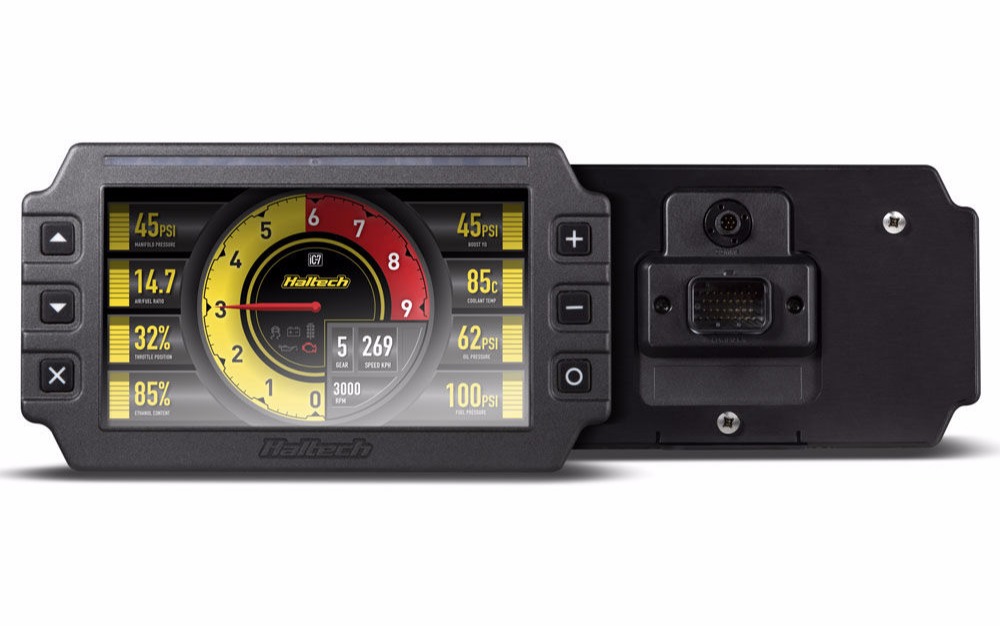

Haltech iC-7 Colour Display Dash
SIZE: 7in
Part Number: HT-067010

SIZE: 7in
SUITS: Compatible with: All currrent Haltech ECUs via CAN.
INCLUDES: Haltech iC-7 Display Dash, 34 Pin main connector harness, DTM-4 to DTM-4 CAN extension cable, USB to M5 right angle cable, USB Cable, Mounting Screws, USB flash drive with iC-7 Software, Quick Start Guide, Haltech stickers and a fabric keyring tag

Mobirise

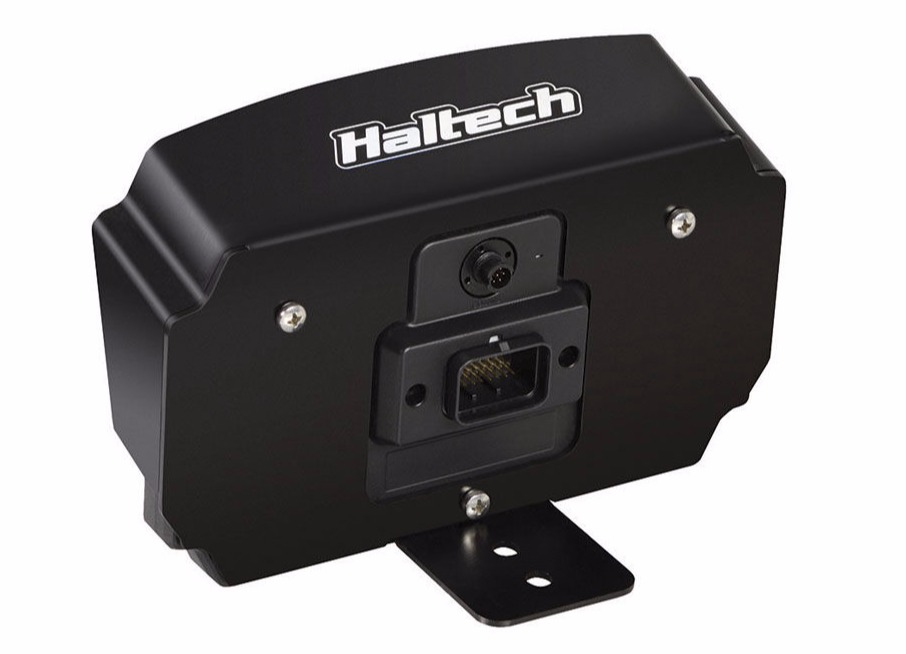

iC-7 Mounting Bracket
with Integrated Visor
Part Number: HT-060071

SUITS: Haltech iC-7 Display Dash
INCLUDES: 1 x 2.5mm Black Annodized Aluminium Bracket with integrated Visor and Laser Etched Haltech Logo
NOTES: Suits Haltech iC-7 Display Dash

Mobirise

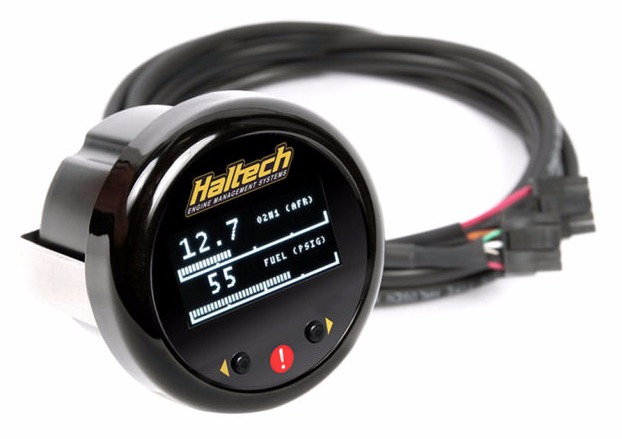

Multi-Function CAN Gauge
SIZE: 52mm (2")
Part Number: HT-061010

SIZE: 52mm (2")
SUITS: Haltech Version 2 CAN bus protocol.
INCLUDES: 52mm (2") CAN Gauge, gaugeART CAN Cable to 8 pin Black Tyco - 2.5m (8ft), mounting bracket.
NOTES: This product is direct Plug'n'Play compatible with an Elite ECU CAN port, Elite ECU Harness CAN connector or multiple CAN device installation using an Elite 4 Port CAN HUB. If you are connecting this product with a Platinum Series ECU you will need a DTM4 to Tyco adaptor cable Part No. HT-130040.

ECU Outputs & Ignition Systems

Klik pada gambar untuk melihat fitur, spesifikasi dan lembaran data.

Mobirise

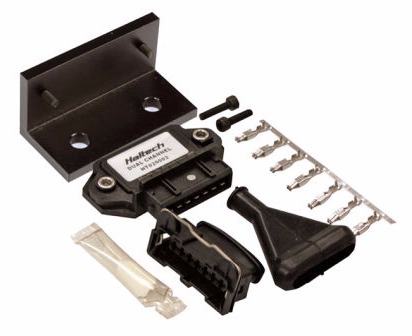

Dual Channel OEM Igniter (DUMB)
Part Number: HT-020002

INCLUDES: Mounting bracket, thermal paste and matching plug and pins.

Mobirise

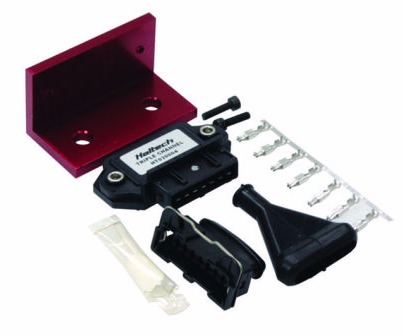

Triple Channel OEM Igniter (DUMB)
Part Number: HT-020004

INCLUDES: Mounting bracket, thermal paste and matching plug and pins.

Mobirise

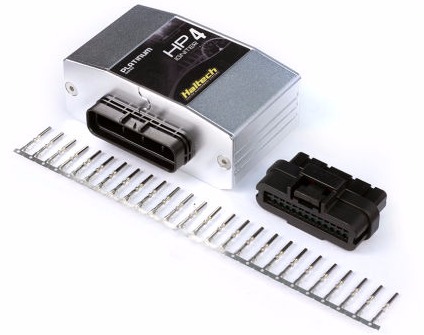

HPI4 - High Power Igniter - 15 Amp Quad Channel
with Plug & Pins
Part Number: HT-020034

INCLUDES: Matching AMP 26 Pin 2 Row Superseal Connector and pins.

Mobirise

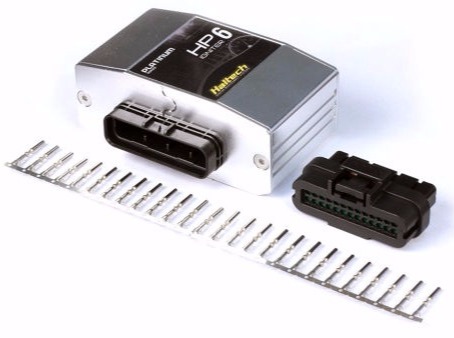

HPI6 - High Power Igniter - 15 Amp Six Channel
with Plug & Pins
Part Number: HT-020038

INCLUDES: Matching AMP 26 Pin 2 Row Superseal Connector and pins.

Mobirise

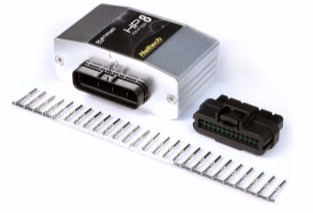

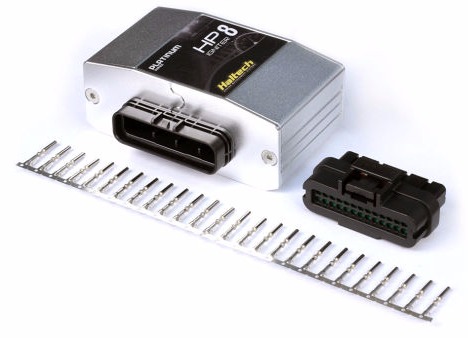

HPI8 - High Power Igniter - 15 Amp Eight Channel
with Plug & Pins
Part Number: HT-020042

INCLUDES: Matching AMP 26 Pin 2 Row Superseal Connector and pins.

Mobirise

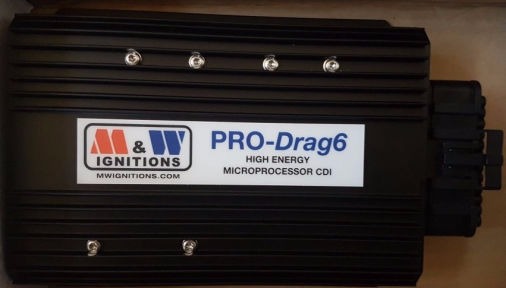

M&W Pro-Drag6
6 CHANNEL 250mJ
CAPACITOR DISCHARGE
IGNITION

SPARK ENERGY: 160/250mJ
FULL POWER LIMIT: 1000/800Hz
20/16,000 RPM
DESCRIPTION: Six channel single box high power ECU triggered cdi with power level and trigger edge selection.

Mobirise

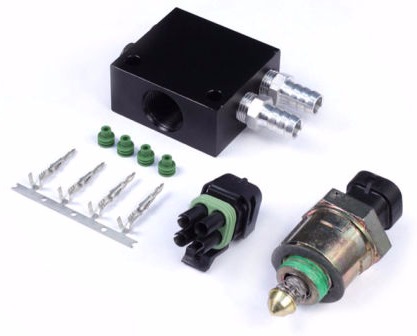

Idle Air Control Kit - Billet 4 Port Housing
with Screw-in Motor
THREAD: 1/4 BSP
Part Number: HT-020310

THREAD: 1/4 BSP
INCLUDES: 10mm (3/8") hosetail fittings and matching plugs and pins.

Mobirise

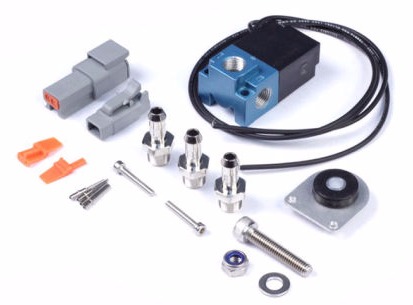

Boost Control Solenoid 3 Port 33Hz
THREAD: 1/8 NPT
Part Number: HT-020400

THREAD: 1/8 NPT
INCLUDES: Hose fittings, rubber isolated mount and matching Set of Deutsch DTM 2 Connectors.

Mobirise

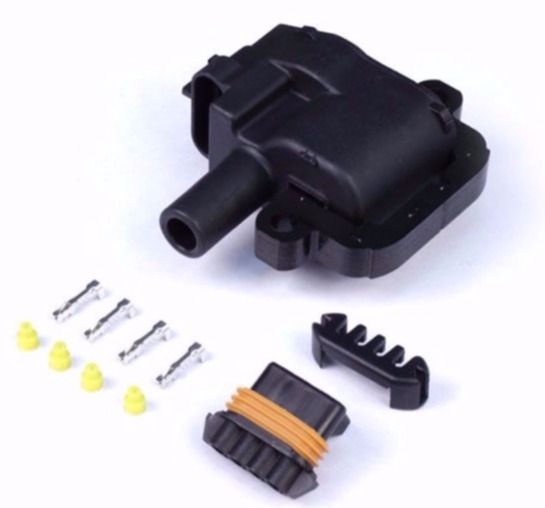

LS1 Coil with built-in Ignitor
Part Number: HT-020102

INCLUDES: Matching plug and pins.

ECU Inputs & O2 Wideband Controllers

Klik pada gambar untuk melihat fitur, spesifikasi dan lembaran data.

Mobirise

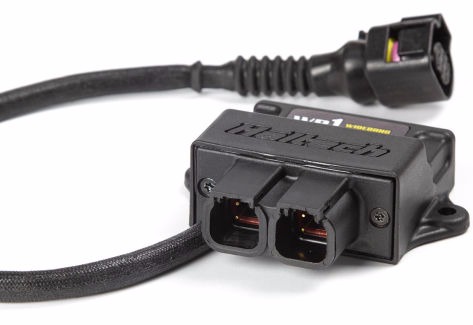

WB1 - Single Channel CAN O2 Wideband Controller Kit
LENGTH: 1.2M (4ft)
Part Number: HT-159976

LENGTH: 1.2M (4ft)
INCLUDES: Single Channel, CAN Wideband Controller, 4.9LSU Sensor, CAN Cable (4'/1200mm), Power Supply Cable, Weld-on Bung, Quick Start Guide.
NOTES: The ideal CAN expansion accessory for all Elite Series ECUs.

Mobirise

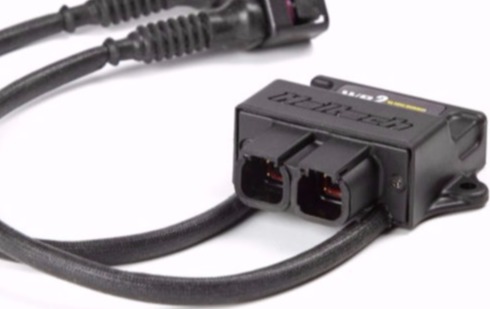

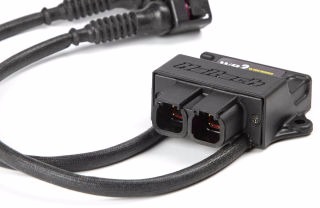

WB2 - Dual Channel CAN O2 Wideband Controller Kit
LENGTH: 1.2M (4ft)
Part Number: HT-159986

LENGTH: 1.2M (4ft)
INCLUDES: Dual Channel, CAN Wideband Controller, 2 x 4.9LSU Sensor, CAN Cable (4'/1200mm), Power Supply Cable, 2 x Weld-on Bung, Quick Start Guide.
NOTES: The ideal CAN expansion accessory for all Elite Series ECUs.

Mobirise

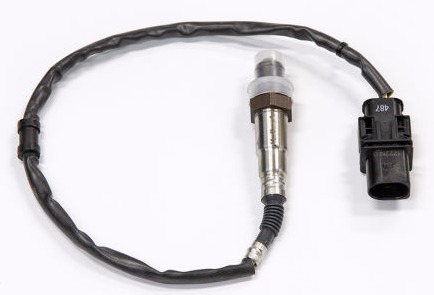

Wideband Sensor - Bosch LSU 4.9
Part Number: HT-010718

SUITS: Elite Pro Plugin ECU and WB1/WB2
INCLUDES: Bosch LSU 4.9 sensor with Factory calibration resistor connector (not a Deutsch DT-6 connector)

Mobirise

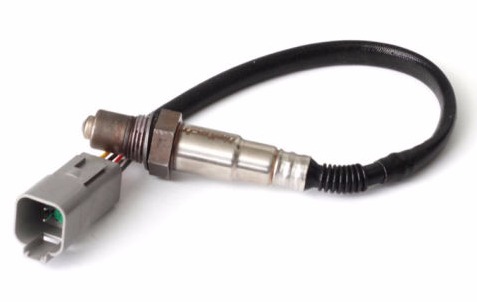

Wideband O2 Sensor only - Bosch LSU 4.2
Part Number: HT-010714

INCLUDES: Pre-terminated with female Deutsch DT-6 connector.

Mobirise

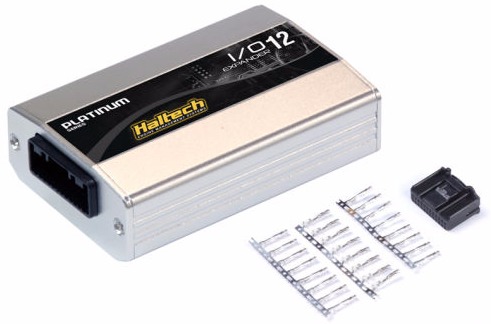

IO 12 Expander - 12 Channel with
Plug & Pins Kit (CAN ID - Box A)
Part Number: HT-059902

OUTPUTS: 4 Digital Pulsed Outputs (DPO) 4 Digital Pulsed Inputs (DPI) 4 Analogue Voltage Inputs (AVI)
INCLUDES: IO 12 Expander with matching 24 Pin TYCO plug and Pins, Elite CAN cable DTM-4 to 8 pin Black TYCO - 300mm (12")
NOTES: Combine two IO 12 Expanders with different CAN ID's (Box A or B) for up to 24 additional channels (subject to ECU compatibility).

Mobirise

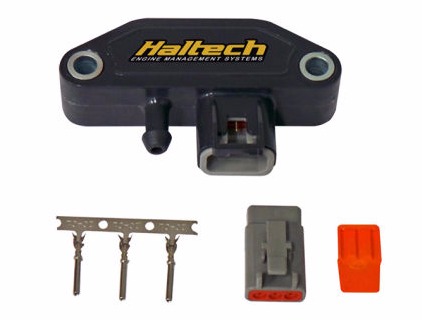

4 Bar Motorsport MAP Sensor
Part Number: HT-010136

INCLUDES: Matching male Deutsch DTM-3 Connector.

Mobirise

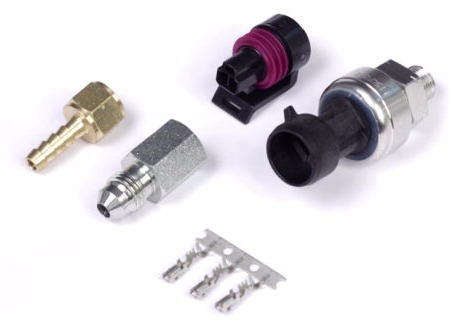

5 Bar "TI" MAP Sensor
THREAD: 1/8 NPT
Part Number: HT-010110

THREAD: 1/8 NPT
INCLUDES: Matching Delphi plug and 3 pins, -4 AN & 5mm hosetail adaptors.
NOTES: "TI" MAP sensors must not be mounted directly to the inlet manifold, they must be remote mounted and connected via a flexible hose - If required use Pressure Sensor Extension Hose.

Mobirise

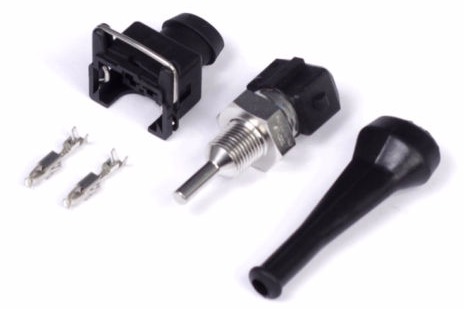

Oil Temperature sensor High Range
THREAD: 1/8 NPT 27TPI
Part Number: HT-010306

THREAD: 1/8 NPT 27TPI
INCLUDES: Matching Bosch EV1 plug & pins.
NOTES: 150 deg C (302 F) Max reading.

Mobirise

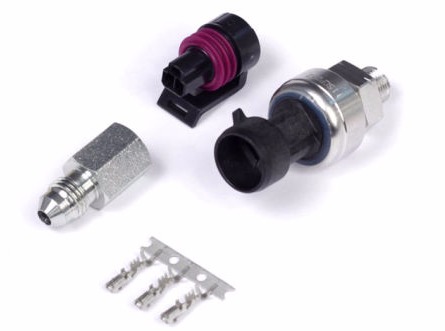

250 PSI "TI" Fuel/Oil/Wastegate Pressure Sensor
THREAD: 1/8 NPT
Part Number: HT-010906

THREAD: 1/8 NPT
INCLUDES: Matching plug and pins, -4 AN adaptor.
NOTES: "TI" Pressure sensors must not be mounted directly into the fuel rail or engine block, they must be remote mounted and connected via a flexible hose - If required use Pressure Sensor Extension Hose.

Mobirise

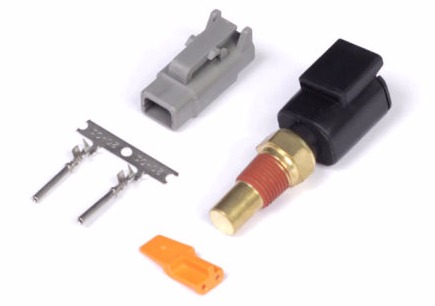

Coolant Temp Sensor - Small Thread
THREAD: M12 x 1.5
Part Number: HT-010300

THREAD: M12 x 1.5
INCLUDES: Matching Delphi plug and pins.
NOTES: 127 deg C (260 F) Max reading.

Mobirise

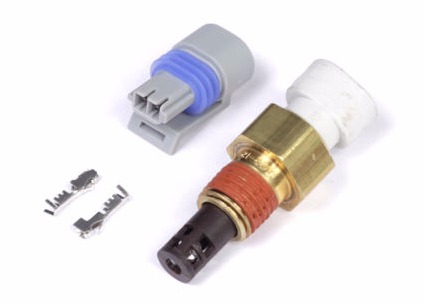

Air Temp Sensor - Small Thread
THREAD: M14 x 1.5
Part Number: HT-010200

THREAD: M14 x 1.5
INCLUDES: Matching Delphi plug and pins.
NOTES: 127 deg C (260 F) Max reading.

Mobirise

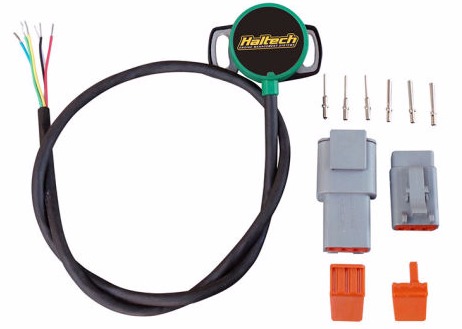

Throttle Position Sensor - Motorsport Contactless
SIZE: 8mm D-Shaft
Part Number: HT-010408

SIZE: 8mm D-Shaft
SUITS: CW & CCW Rotation

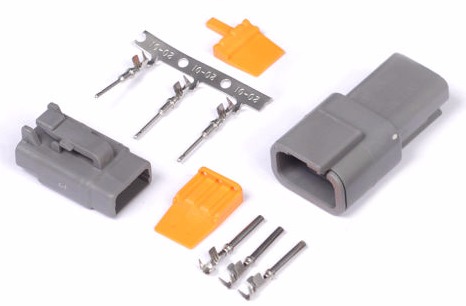

INCLUDES: Matching Set of Deutsch DTM-3 Connectors.

Mobirise

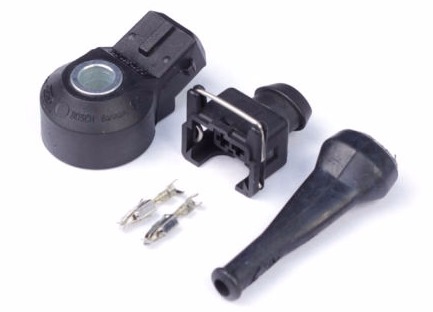

Knock Sensor - Genuine Bosch
Part Number: HT-011100

SUITS: 8mm (5/16") mounting bolt.
INCLUDES: Matching plug and 2 pins.

Mobirise

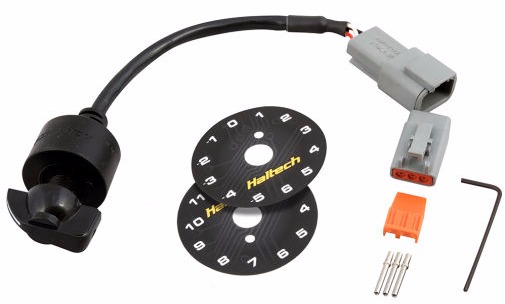

12 Position Rotary Trim Module
(Boost/Fuel/Ign etc)
Part Number: HT-010504

INCLUDES: 2 position decals and matching set of Deutsch DTM 3 connectors.

Mobirise

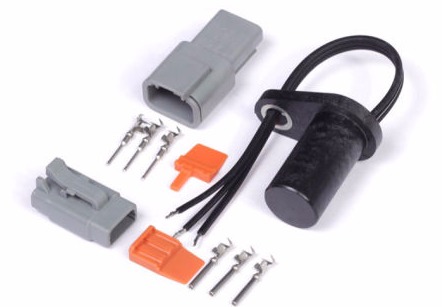

Honeywell GT101 Single Channel Hall Effect Sensor
SIZE: 18mm Diameter
Part Number: HT-010608

SIZE: 18mm Diameter
SUITS: Wheel Speed, Crank/Cam etc.
INCLUDES: Matching set of Deutsch DTM 3 connectors.

Mobirise

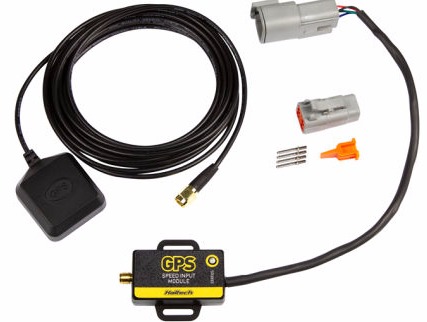

GPS Speed Input Module
LENGTH: 300mm
Part Number: HT-011310

LENGTH: 300mm
OUTPUTS: 0V to 12V Pulsed Output
SUITS: Apllications that require a digital speed signal
INCLUDES: Includes: GPS Speed Input Module & GPS Antenna Matching male DTM-3 Connector and pins
NOTES: Calibration: 5000ppk (5000 pulses per km) Use with SPI or DPI ECU Inputs

Mobirise

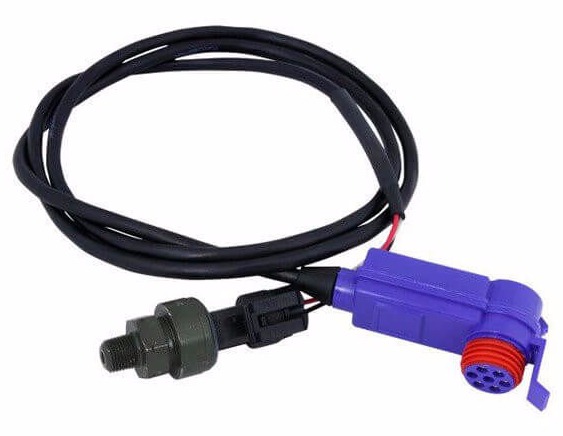

Racepak V-Net Brake Pressure Sensor
Part Number: 220-VP-PT-B1500

OVERVIEW: 0-1500 PSI V-Net Brake pressure module and sensor.

Mobirise

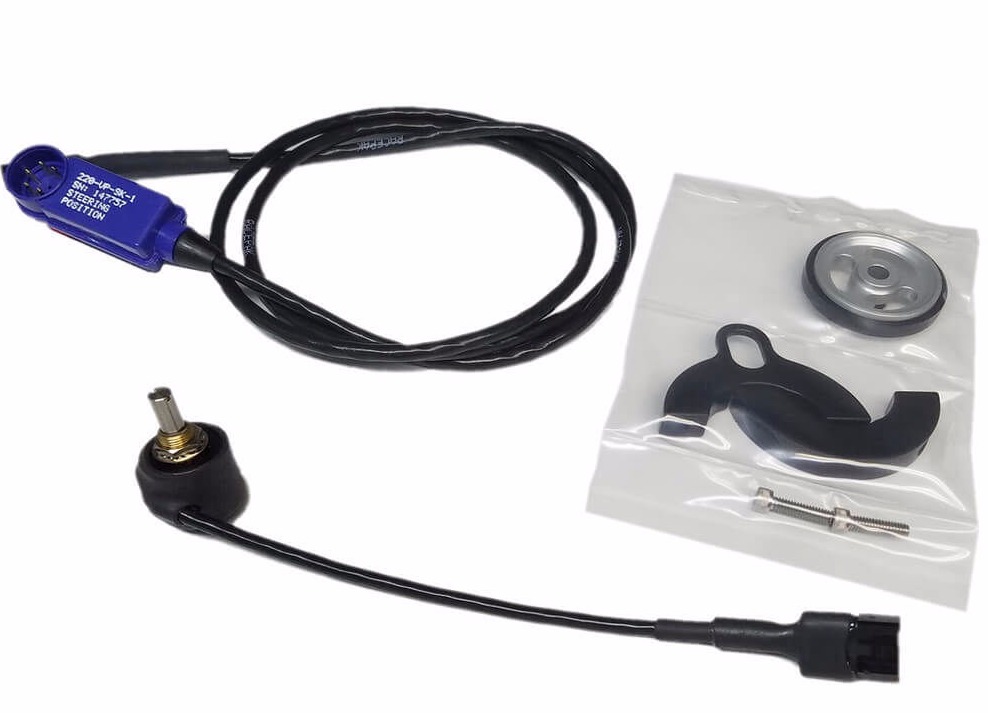

Racepak V-Net Steering Sensor
Part Number: 220-VP-SK-1

OVERVIEW: V-Net Steering Wheel position module and sensor.

Others

Klik pada gambar untuk melihat fitur, spesifikasi dan lembaran data.

Mobirise

Plug and Pins Only - AMP 26 & 34 Pin 4 Row
3 Keyway Superseal Connector Set
Part Number: HT-030001

SUITS: E8/11, PS1000/2000 and Elite 1000-2500 ECUs.

Mobirise

Solid State Relay 100 AMP
Part Number: HT-030202

SUITS: High frequency PWM control of auxiliary injectors, variable speed fan or pump control etc.
INCLUDES: 1K Pull up resistor.

Mobirise

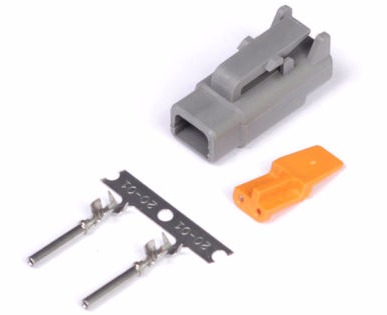

Plug and Pins Only - Matching Set of Deutsch DTM-2
Connectors (7.5 Amp)
Part Number: HT-031012

INCLUDES: Male Plug, Female Receptacle/Socket, Wedgelocks, Seals, Male & Female Pins.

Mobirise

Plug and Pins Only - Matching Set of Deutsch DTM-3
Connectors (7.5 Amp)
Part Number: HT-031013

INCLUDES: Male Plug, Female Receptacle/Socket, Wedgelocks, Seals, Male & Female Pins.

Mobirise

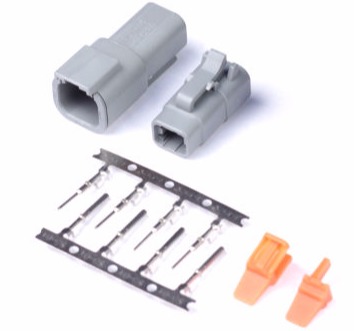

Plug and Pins Only - Matching Set of Deutsch DTM-4
Connectors (7.5 Amp)
Part Number: HT-031014

INCLUDES: Male Plug, Female Receptacle/Socket, Wedgelocks, Seals, Male & Female Pins.

Mobirise

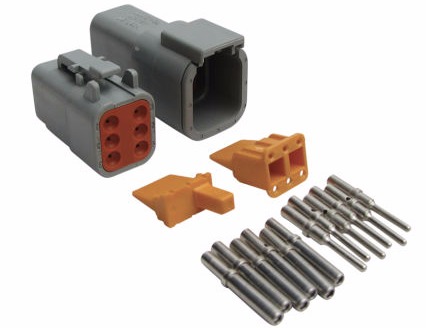

Plug and Pins Only - Matching Set of Deutsch DTM-6
Connectors (7.5 Amp)
Part Number: HT-031015

INCLUDES: Male Plug, Female Receptacle/Socket, Wedgelocks, Seals, Male & Female Pins.

HUBUNGI KAMI

Apabila anda tertarik dengan jasa dan produk kami, silahkan tulis pesan anda pada formulir dibawah ini, kami akan merespon pesan anda secepatnya (ECU, Parts, Dyno Booking, Tuning, dll)

Mohon check E-mail balasan dari kami di folder junk/spam pada program E-mail anda dan pilih serta set pesan E-mail dari kami menjadi "not junk/not spam"

SHARE THIS PAGE!

© Copyright 2020 KS Motorsport Indonesia - All Rights Reserved
